Mavic 3M KMZ: RGB-only photo capture in DJI Pilot 2

General Discussion
1

How can I export an RGB-only KMZ mission for DJI Mavic 3 Multispectral to DJI Pilot 2?

Hi,

I am using Litchi Hub to create waypoint missions and then exporting/importing the KMZ into DJI Pilot 2.

Drone: DJI Mavic 3 Multispectral / Mavic 3M
App used for flying: DJI Pilot 2
Mission source: Litchi Hub KMZ export

The mission imports correctly into DJI Pilot 2 and the waypoint route works, but every photo action seems to trigger both RGB and multispectral image capture. Sometimes I only want RGB/visible-light images, not the multispectral bands, to reduce file size and simplify processing.

After the mission is imported into DJI Pilot 2, I cannot find any option to switch the mission/photo mode from RGB + multispectral to RGB only. We have checked both Litchi Hub and DJI Pilot 2, but we do not see a setting for this on the imported KMZ mission.

I inspected the KMZ/WPML files and noticed that the exported mission seems to use:

droneEnumValue = 77
droneSubEnumValue = 0
payloadEnumValue = 66

From DJI WPML documentation, this looks like Mavic 3E / Mavic 3E camera, while Mavic 3M should maybe be:

droneEnumValue = 77
droneSubEnumValue = 2
payloadEnumValue = 68

I also tried adding this to the WPML payload parameters:

wpml:payloadParam
wpml:payloadPositionIndex0</wpml:payloadPositionIndex>
wpml:imageFormatvisible</wpml:imageFormat>
</wpml:payloadParam>

The modified KMZ imports correctly into DJI Pilot 2, but I have not fully tested yet whether this actually prevents multispectral capture.

My questions are:

  1. Does Litchi Hub currently support exporting DJI Pilot 2 KMZ missions specifically for Mavic 3M / Mavic 3 Multispectral?
  2. Is there a supported way to set RGB-only / visible-only capture from Litchi Hub?
  3. Should Litchi Hub export the Mavic 3M payload as payloadEnumValue 68 instead of 66?
  4. Is wpml:imageFormatvisible</wpml:imageFormat> the correct way to force RGB-only capture in DJI Pilot 2?
  5. Or is the RGB/MS photo type controlled only inside DJI Pilot 2 and not through the KMZ/WPML file?

Any advice or example KMZ/WPML for a Mavic 3M RGB-only waypoint mission would be very helpful.

Thanks!

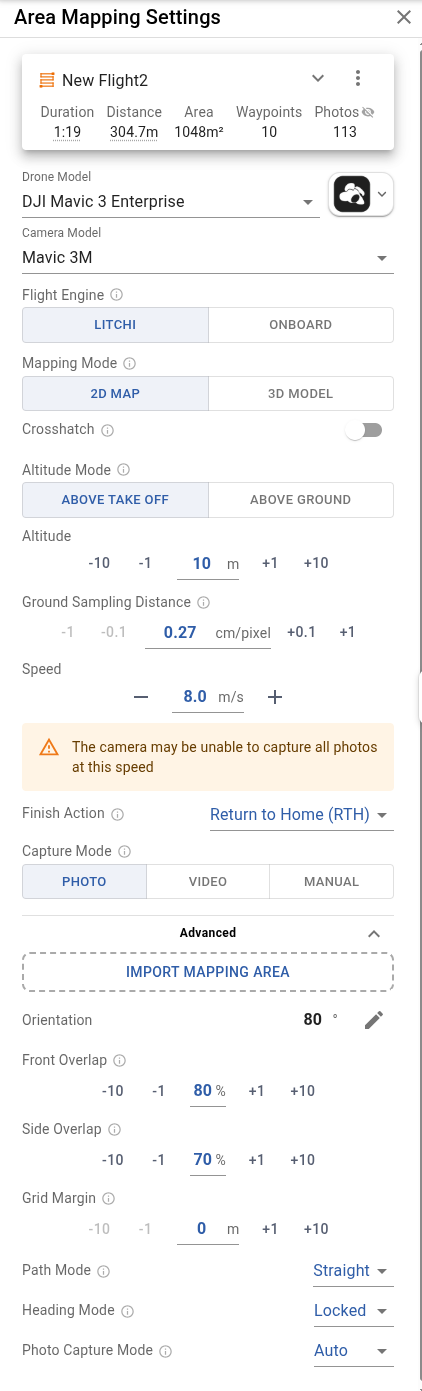

image422×1391 66.3 KB

2

You can select the Mavic 3 Multispectral in the Litchi Hub flight settings:

Capture
Capture417×130 6.5 KB

However, that appears to only set the drone enum values (77, 2). The “payload” values appear to be missing from the Litchi Hub KMZ export.

3

As you can see in DJI’s own doc, the M3M is not well supported: Cloud API

In fact M3M is not supported in DJI Flight Hub 2 as far as I know.

Experiment with it, and let us know what works and we can make changes. We don’t have this drone so cannot test ourselves.

Litchi currently exports 77/2 for M3M although the 2 is a guess, we have not confirmed it on a real drone.

4

Thank you.

I will experiment with what works.

If I find anything useful I will suggest some changes!
